Garlic Routing

This page was last updated in March 2014 and is accurate for router version 0.9.12.

Garlic Routing

Garlic Routing and "Garlic" Terminology

The terms "garlic routing" and "garlic encryption" are often used rather loosely when referring to I2P's technology. Here, we explain the history of the terms, the various meanings, and the usage of "garlic" methods in I2P.

"Garlic routing" was first coined by Michael J. Freedman in Roger Dingledine's Free Haven Master's thesis Section 8.1.1 (June 2000), as derived from Onion Routing.

"Garlic" may have been used originally by I2P developers because I2P implements a form of bundling as Freedman describes, or simply to emphasize general differences from Tor. The specific reasoning may be lost to history. Generally, when referring to I2P, the term "garlic" may mean one of three things:

  1. Layered Encryption
  2. Bundling multiple messages together
  3. ElGamal/AES Encryption

Unfortunately, I2P's usage of "garlic" terminology over the past seven years has not always been precise; therefore the reader is cautioned when encountering the term. Hopefully, the explanation below will make things clear.

Layered Encryption

Onion routing is a technique for building paths, or tunnels, through a series of peers, and then using that tunnel. Messages are repeatedly encrypted by the originator, and then decrypted by each hop. During the building phase, only the routing instructions for the next hop are exposed to each peer. During the operating phase, messages are passed through the tunnel, and the message and its routing instructions are only exposed to the endpoint of the tunnel.

This is similar to the way Mixmaster (see network comparisons) sends messages - taking a message, encrypting it to the recipient's public key, taking that encrypted message and encrypting it (along with instructions specifying the next hop), and then taking that resulting encrypted message and so on, until it has one layer of encryption per hop along the path.

In this sense, "garlic routing" as a general concept is identical to "onion routing". As implemented in I2P, of course, there are several differences from the implementation in Tor; see below. Even so, there are substantial similarities such that I2P benefits from a large amount of academic research on onion routing, Tor, and similar mixnets.

Bundling Multiple Messages

Michael Freedman defined "garlic routing" as an extension to onion routing, in which multiple messages are bundled together. He called each message a "bulb". All the messages, each with its own delivery instructions, are exposed at the endpoint. This allows the efficient bundling of an onion routing "reply block" with the original message.

This concept is implemented in I2P, as described below. Our term for garlic "bulbs" is "cloves". Any number of messages can be contained, instead of just a single message. This is a significant distinction from the onion routing implemented in Tor. However, it is only one of many major architectural differences between I2P and Tor; perhaps it is not, by itself, enough to justify a change in terminology.

Another difference from the method described by Freedman is that the path is unidirectional - there is no "turning point" as seen in onion routing or mixmaster reply blocks, which greatly simplifies the algorithm and allows for more flexible and reliable delivery.

ElGamal/AES Encryption

In some cases, "garlic encryption" may simply mean ElGamal/AES+SessionTag encryption (without multiple layers).

"Garlic" Methods in I2P

Now that we've defined various "garlic" terms, we can say that I2P uses garlic routing, bundling and encryption in three places:

  1. For building and routing through tunnels (layered encryption)
  2. For determining the success or failure of end to end message delivery (bundling)
  3. For publishing some network database entries (dampening the probability of a successful traffic analysis attack) (ElGamal/AES)

There are also significant ways that this technique can be used to improve the performance of the network, exploiting transport latency/throughput tradeoffs, and branching data through redundant paths to increase reliability.

Tunnel Building and Routing

In I2P, tunnels are unidirectional. Each party builds two tunnels, one for outbound and one for inbound traffic. Therefore, four tunnels are required for a single round-trip message and reply.

Tunnels are built, and then used, with layered encryption. This is described on the tunnel implementation page. Tunnel building details are defined on this page. We use ElGamal/AES+SessionTag for the encryption.

Tunnels are a general-purpose mechanism to transport all I2NP messages, and Garlic Messages are not used to build tunnels. We do not bundle multiple I2NP messages into a single Garlic Message for unwrapping at the outbound tunnel endpoint; the tunnel encryption is sufficient.

End-to-End Message Bundling

At the layer above tunnels, I2P delivers end-to-end messages between Destinations. Just as within a single tunnel, we use ElGamal/AES+SessionTag for the encryption. Each client message as delivered to the router through the I2CP interface becomes a single Garlic Clove with its own Delivery Instructions, inside a Garlic Message. Delivery Instructions may specify a Destination, Router, or Tunnel.

Generally, a Garlic Message will contain only one clove. However, the router will periodically bundle two additional cloves in the Garlic Message:

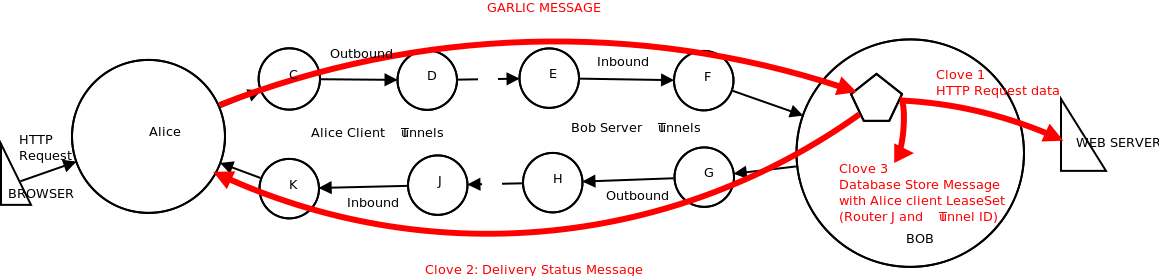

Garlic Message Cloves
  1. A Delivery Status Message, with Delivery Instructions specifying that it be sent back to the originating router as an acknowledgment. This is similar to the "reply block" or "reply onion" described in the references. It is used for determining the success or failure of end to end message delivery. The originating router may, upon failure to receive the Delivery Status Message within the expected time period, modify the routing to the far-end Destination, or take other actions.
  2. A Database Store Message, containing a LeaseSet for the originating Destination, with Delivery Instructions specifying the far-end destination's router. By periodically bundling a LeaseSet, the router ensures that the far-end will be able to maintain communications. Otherwise the far-end would have to query a floodfill router for the network database entry, and all LeaseSets would have to be published to the network database, as explained on the network database page.

By default, the Delivery Status and Database Store Messages are bundled when the local LeaseSet changes, when additional Session Tags are delivered, or if the messages have not been bundled in the previous minute. As of release 0.9.2, the client may configure the default number of Session Tags to send and the low tag threshold for the current session. See the I2CP options specification for details. The session settings may also be overridden on a per-message basis. See the I2CP Send Message Expires specification for details.

Obviously, the additional messages are currently bundled for specific purposes, and not part of a general-purpose routing scheme.

As of release 0.9.12, the Delivery Status Message is wrapped in another Garlic Message by the originator so that the contents are encrypted and not visible to routers on the return path.

Storage to the Floodfill Network Database

As explained on the network database page, local LeaseSets are sent to floodfill routers in a Database Store Message wrapped in a Garlic Message so it is not visible to the tunnel's outbound gateway.

Future Work

The Garlic Message mechanism is very flexible and provides a structure for implementing many types of mixnet delivery methods. Together with the unused delay option in the tunnel message Delivery Instructions, a wide spectrum of batching, delay, mixing, and routing strategies are possible.

In particular, there is potential for much more flexibility at the outbound tunnel endpoint. Messages could possibly be routed from there to one of several tunnels (thus minimizing point-to-point connections), or multicast to several tunnels for redundancy, or streaming audio and video.

Such experiments may conflict with the need to ensure security and anonymity, such as limiting certain routing paths, restricting the types of I2NP messages that may be forwarded along various paths, and enforcing certain message expiration times.

As a part of ElGamal/AES encryption, a garlic message contains a sender specified amount of padding data, allowing the sender to take active countermeasures against traffic analysis. This is not currently used, beyond the requirement to pad to a multiple of 16 bytes.

Encryption of additional messages to and from the floodfill routers.
